Our catalogue includes both digital maps and published maps available to purchase.

To purchase maps or data, contact our Map Sales Counter at mapsales@toronto.ca.

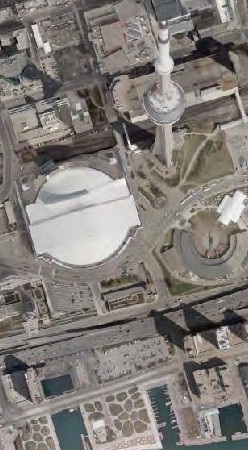

Toronto Maps Catalog - OrthoThe City of Toronto’s high-resolution orthoimagery can be used in GIS/CAD applications and the associated geo-referencing of the images enables the overlay of vector data.

Coordinate System:  MTM  NAD 27



 Format Design
Scale
Resolution Cost
Web Map Service Varies Varies Free on Open Data
GEOTIFF Varies Varies $28.99 /tile
(500m x 500m)
“Ortho Print”
PDF – 11”x17”
User-defined User-defined $8.13
“Ortho Print”
PDF – 8.5” x 11”
User-defined User-defined $5.79

Toronto Maps Catalog - TopoTopographic mapping is maintained via the City of Toronto’s Enterprise Stereoscopic Model (ESM). The mapping is available in both 2D and 3D. Topographic mapping includes features that are visible on the ground (planimetric), or can be derived from photogrammetric measurements. The mapping contributes towards the Property Data Map series.

The topographic mapping features include but are not limited to curbs, sidewalks, building rooftops, driveways, fences, vegetation, manholes, and catchbasins.

Tiling Scheme: User Defined Area
Total Map Area: 640 km2
Data Size: Total approx. 2 GB (2D) or 2.5 GB (3D)
Coordinate System: MTM NAD 27

For tiled topographic mapping products, see Property Data Map.

Format Design Scale Cost
DGN, DXF, DWG 1:500 $347.89 /km2
Stereo Pairs $57.98

Toronto Maps Catalog - DTMThe Digital Terrain Model (DTM) is an irregular grid of 3D points (x,y,z) with the density of the grid varying, dependent upon the terrain. Full breaklines are included as part of the data set. Typically, the DTM is used to generate Triangular Irregular Networks (TINs) for the purposes of 3D modelling and analysis.

Map Area: User defined (Full Resolution); Entire City (Generalised)
Total Area: 640km2
Data Size: ~ 420 Mb in total (Full Resolution) or ~ 12 Mb in total (Generalised)
Coordinate System: MTM NAD 27
Vintage: 2005

Format Design Scale Cost
Full Resolution DGN, DXF,
DWG, Text
1:500 $289.91 /km2

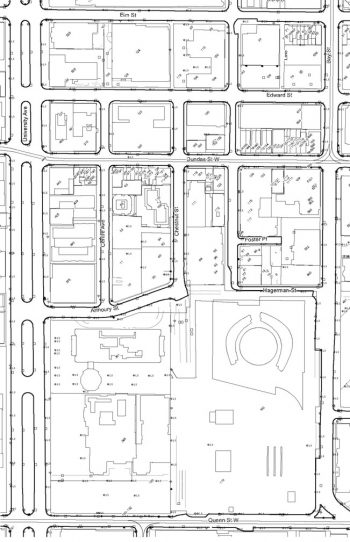

Toronto Maps Catalog - Property Data Maps

The City’s Property Data Map (PDM) Series is a hybrid product, combining elements of topographic, parcel mapping, the One Address Repository (OAR) and Toronto Street Centreline (TCL). The PDM series provides a base for thematic mapping services and other published hardcopy products.

The PDM depicts the following features: building envelopes, railway lines, major watercourses, curbs, catchbasins, hydrants, streetlights/poles, municipal addresses, street names, property lines, street lines, and right of way boundaries

Tiling Scheme: Concession
Sub-Block Map Area: Varies up to 1.18 km2
Total Map: 921 maps
Coordinate System: MTM NAD 27
Black and White Map

Format Cost
DGN, DXF, DWG $115.98 /map
PDF (11”x17”) (1:4000) $4.65 /map
$162.37 /city set

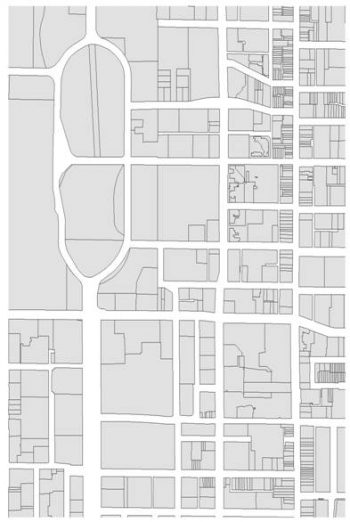

Toronto Maps Catalogue - Parcel extractionThe City of Toronto’s parcel mapping is continuously maintained in a spatial database with associated attributes.

The parcel mapping fabric can be used in its native content showing land subdivision boundaries or through derived layers such as condominium properties and Right of Way information.

Parcel mapping is also a contributor to the Property Data Map series.

Map Area: User Defined Area
Coordinate System: MTM NAD 27

Format Design Scale Cost
ESRI Shapefile Free on Open Data
DGN, DXF, DWG 1:500 $139.16 /km2

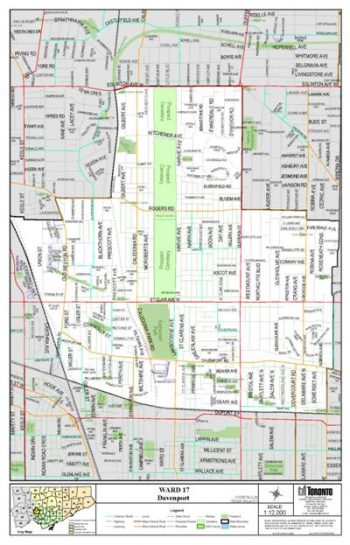

Toronto Maps Catalog - Ward

Ward Maps depict streets, parks and street names by City of Toronto Electoral Wards.

Two versions are currently available:

  • Current boundaries for the City of Toronto’s 44 municipal wards that are in effect until November 30, 2018
  • Boundaries for the City of Toronto’s 25 municipal wards that will be used to conduct the 2018 general municipal election and will come into force on December 1, 2018.

Map scales are dependent upon the geographic area of each Ward.

Colour Map
Map Size:  26”x 36”  or 11”x17”
Total Map Area: Individual Ward Areas

Size Format Design Scale Cost
11″ x 17″ PDF Various $5.79
26″ x 36″ PDF Various $6.94

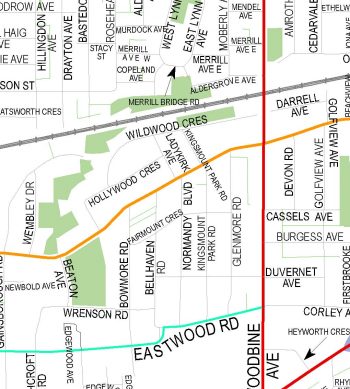

Toronto Maps Catalog - CentrelineThe City of Toronto’s Centreline (TCL) contains geographic linear representation of transportation, hydro and rail corridors, administrative boundaries and shorelines.

Free on Open Data.

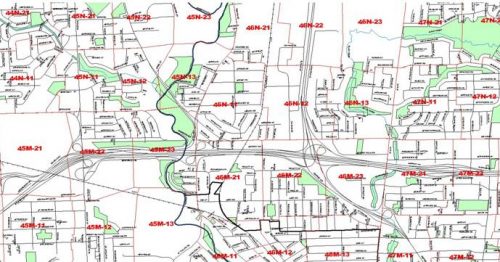

Sample of the citywide map showing streets, property data maps tiles and parks

The City of Toronto’s Centreline (TCL) contains a geographic linear representation of transportation, hydro and rail corridors, administrative boundaries and shorelines.

The Toronto Centreline Map show single line representation of streets, street names, railways, and major watercourses in the City, and are to be used for general information purposes only.

The Community Council Maps cover one City of Toronto Community Council Service Area (North York, Etobicoke York, Toronto and East York, Scarborough).

The Community Council Boundaries and Electoral Wards map displays Electoral Ward boundaries, Community Council boundaries, streets and street maps. There are two Ward Index Map sizes:

  • Tabloid size map shows ward boundaries, major streets, Councillor names and telephone numbers.
  • Large wall map shows ward boundaries, all streets, street names, watercourses, parks and railways.



Description Format Cost
Toronto Centreline Map 36”x70”, colour (PDF) $28.99 /entire City
Community Council Boundaries
and Electoral Wards map
36”x70”, colour (PDF) $28.99 /entire City
Community Council Boundaries
and Electoral Wards map
24″ x 36″
colour
(PDF)
$17.40
/entire City
Community Council Boundaries
and Electoral Wards map
11″ x 17″
colour
(PDF)
$11.59
/entire City
Community Council map
(aka.District Street Map)
36”x45” (PDF) $17.40 /per Community Council
PDM Street Index map 36”x70”, colour (PDF) $28.99 /entire City



The Toronto Centreline dataset is available as an ESRI Shapefile for free – Download from Open Data.

Toronto Map Catalog - Ravine Certification

The Ravine Protection Line Certificate depicts the locations of lands subject to provisions within the City of Toronto Municipal Code Chapter 658 – Ravine and Natural Feature Protection.

Please note: If you have the ability to add the line on your site plan and/or survey accurately using Microstation, AutoCAD or other CAD/GIS software, you are no longer required to purchase a Ravine and Natural Feature Protection plan from the City of Toronto.

You can download the Ravine Line here: http://bit.ly/COTGCC_RNFP, import this data into your site plan, and submit this as your site plan with the Ravine boundary line to Parks, Forestry & Recreation Division for review.

If you require assistance to add the published Ravine and Natural Feature Protection line on your site plan, we can provide this service for you.  You are required to submit a site plan in DGN or DWG format to mapsales@toronto.ca.

The file must be in metric and to scale.  Files that are in imperial or that are not to scale, will not be accepted.

The Ravine line certificate will be returned to you in DGN, DWG and/or PDF formats.

If you do not have a digital file (DGN/DWG) and must submit a printed site plan, we will mark the ravine line on it.

Format Design Scale Cost
DGN, DWG, PDF, PAPER Varies $75.37 per property



For information on obtaining a Tree Permit to remove, cut down or in any other way injure a tree on private property please contact Parks, Forestry & Recreation.

Digital Map Owners Group (DMOG) Data and Sewer and Water Network data are maintained and distributed by the Engineering & Construction Services Division.

Note: Prices listed in Municipal Code Chapter 441 Appendix C Section 18. Purchaser must sign a digital data release form for digital map orders.

All prices are subject to HST.
