Long Branch, Etobicoke Zoning Code Division C – Zoning Information

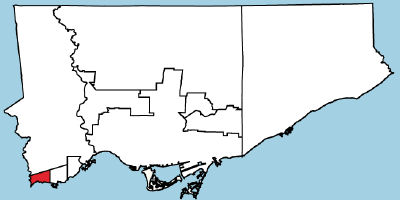

Longbranch Zoning Key MapThis information sheet lists the general requirements for each residential zone and has been prepared for convenience purposes only.

For complete information, refer to Etobicoke Zoning Code, as amended.









Single Family Dwellings (Requirements listed below are for most interior lots)

Requirements Zoning Designation
RS RM1 RM2 RMA
Single Family Detached Dwelling Permitted Permitted Permitted Permitted
Min. lot area 371m2 371m2 371m2 371m2
Min. lot frontage 12.0m 12.0m 12.0m 12.0m
Min. ground floor area
one storey dwelling (excluding garage) 83m2 83m2 83m2 83m2
one and one-half storey dwelling (excluding garage) 69m2 69m2 69m2 69m2
two or more storey dwelling (excluding garage) 46m2 46m2 46m2 46m2
Max. floor space index 0.35 0.35 0.35 0.35
Max. floor space index 6.0 m from front property line to the front of main building but where there is an established building line the existing building line shall govern.
Side yard setbacks 0.9m 0.9m 0.9m 0.9m
Rear yard set back 7.5 m or 0.6 x the lesser height or the width of the building, which ever is greater
Max. height 9.5m to the highest point on the roof
Semi-Detached Dwelling Not permitted Permitted Permitted Permitted
Min lot area per unit 325m2 325m2 325m2
Min lot width per unit 10.5m 10.5m 10.5m
Min floor area 69m2 69m2 69m2
Max. floor space index 0.6 0.6 0.6
Front yard setback 6.0m from front property line to the front of main building but where there is an established building line the existing building line shall govern.
Side yard setbacks 0.9 0.9 0.9
Rear yard set back 7.5m 7.5m 7.5m
11m 11m 11m

Accessory Buildings and Structures (Garages / Carports / Sheds / Pools)

Max. coverage No individual structure is permitted to exceed 2% coverage of the lot area except that a private garage, carport or swimming pool (inc. a pool enclosure) may cover up to 10% of the lot area. 12% of the lot area for all accessory buildings and structures. 35% of the rear lot area for all accessory buildings and structures Note: swimming pools not more than 0.3m above the average natural ground level shall not be included in this calculation
Min. floor area for a private garage and carport Minimum 18m2of floor space – For Parking Space Size Requirements, refer to By-law # 497-2007
Min. distance to main building Any accessory structure in the rear yard is required to be maintained a minimum of 1.0m from main building.
Side yard setback All accessory buildings in the side yard require a side yard setback of not less than the minimum required for the main building.
Side yard setback for a garage on a corner lot. 6.0m from flanking street to garage door or wall that contains the garage door.
Rear yard and side yard setbacks 0.4m from the property line. Overhang projections (i.e. soffits and eavestroughs) are required to be 0.15m from property lines.
Max. height 3.7m to a point halfway up the surface of a pitched roof and 2.5m to the top of the walls or supporting posts. Flat roofs not to exceed 2.5m in height.
Corner lots Any garage or carport is required to be attached to the dwelling.

Note:
(1) Under size lots are defined as lots having a frontage of less than 7.5m. For details on requirements for undersize lots see 330-20 in the Etobicoke Code.

Definitions

Established building line The average depth of front yard of the main buildings on the 2 lots flanking the lot in question.
Floor Space Index The ratio of the total gross floor area of the building to the lot area.
Gross floor area The total area of all floors in a building between the outside faces of the exterior walls, except for storage rooms where the floor area level is at least 0.6m below grade, or parking areas for motor vehicles and mechanical rooms. Laundry and recreation rooms located in cellars shall be excluded. Note: a floor area having a ceiling height greater than 4.6m shall be doubled for the purpose of GFA calculations.
Ground Floor Area The total area of a building at grade between the outside faces of the exterior walls, excluding, in the case of a dwelling, a private garage, porch or veranda.
Height of Building The distance measured from the average natural, unaltered grade at the intersection of the side yard lot lines and the min. front yard setback to highest point of the roof or soffit of the eaves.
Private Garage An accessory building, either detached or part of a dwelling, to park private motor vehicles and store private household equipment.



Permitted Encroachments

Font yard setback 1.6m for open terrace, open and/or roofed porchway or veranda having columns that do not exceed 33cm in width or depth and walls, guardrails or balustrades that do not exceed 107cm in height
Uncovered steps to grade 0.5m for a chimney-breast
Rear yard setbacks 1.6m for open terrace, open and/or roofed porchway or veranda having columns that do not exceed 33cm in width or depth and walls, guardrails or balustrades that do not exceed 107cm in height
Side yard setbacks 0.4m for a chimney-breast, steps, eaves or other projections from the main side wall of a building
Side yard setbacks for corner lots 1.6m for open terrace, open and/or roofed porchway or veranda having columns that do not exceed 33cm in width or depth and walls, guardrails or balustrades that do not exceed 107cm in height
